DASHCAM VM441 – USER MANUAL

for models VM441 – VM441D – VM441E – VM441F – VM441P – VM441U

DISCOVER YOUR DASHCAM VM441

1. DASHCAM mount with quick release system

2. Adjustable camera lens

3. Button

4. Micro SD CARD slot

5. SIM CARD indicator LED

6. LED status indicator

7. Microphone

8. TYPE-C power supply port

9. Micro SD CARD slot

10. RESET button

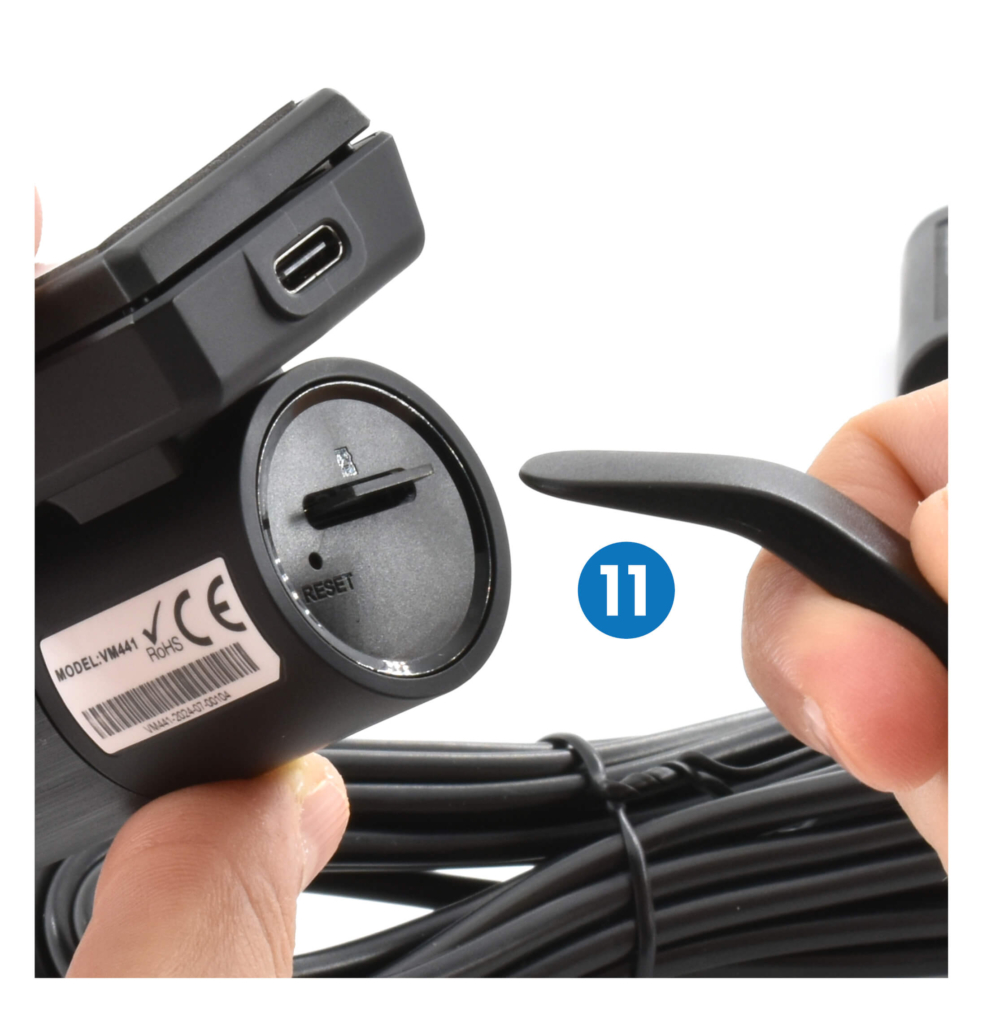

11. Use the supplied tool (11) to remove the MICRO SD CARD

SIM CARD ACTIVATION

  • VM441

    The VERY MOBILE SIM CARD SUPPLIED MUST BE ACTIVATED before use.
    15 € of traffic included.

    WARNING: activation is handled directly by the installer. The SIM card is provided already activated.

  • VM441D | VM441E | VM441F | VM441P | VM441U

    SIM CARD with 3 Gb traffic for 30 days included, valid only outside of Italy.

    ATTENTION: The user must activate the SIM CARD independently by downloading the EIOTCLUB APP and following the instructions directly on their smartphone.

INSERT MICRO SD and SIM CARD

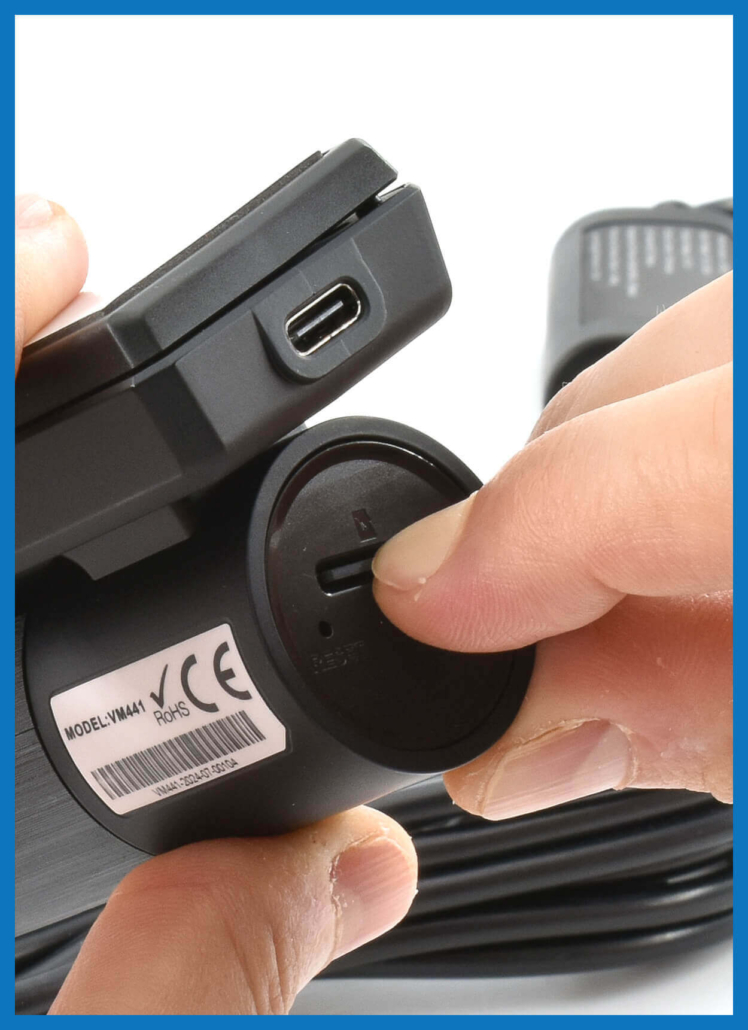

  • INSERT THE MICRO SD CARD IN ITS SLOT.

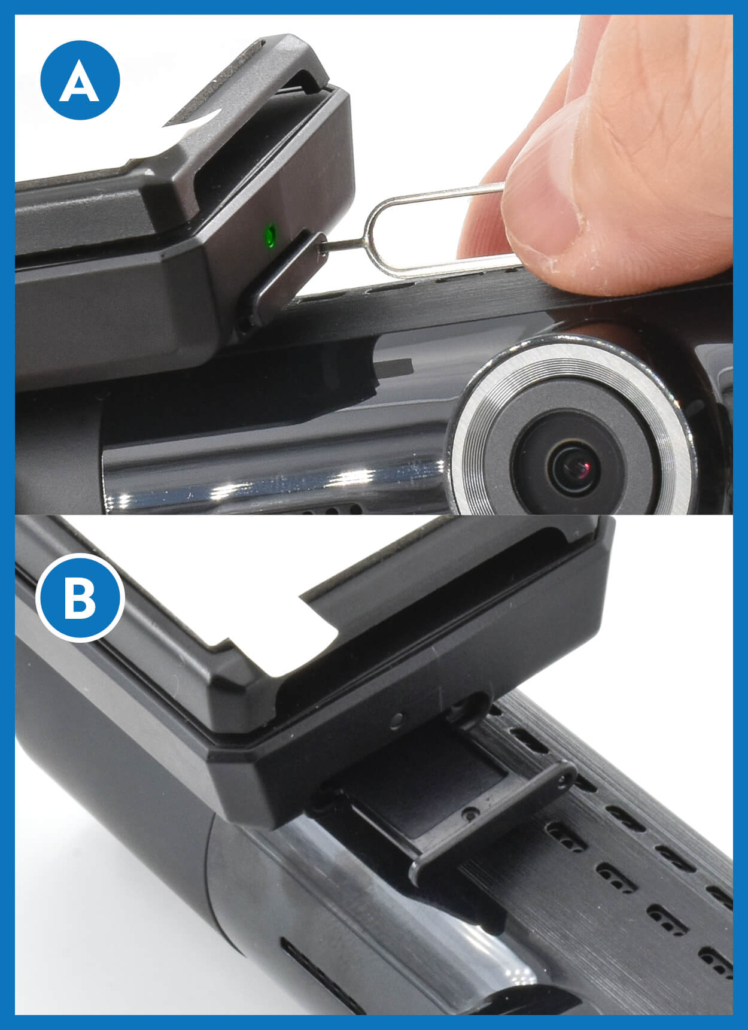

  • INSERT THE SIM CARD IN ITS SLOT.

    Use the SIM CARD tool to eject the SIM CARD tray.

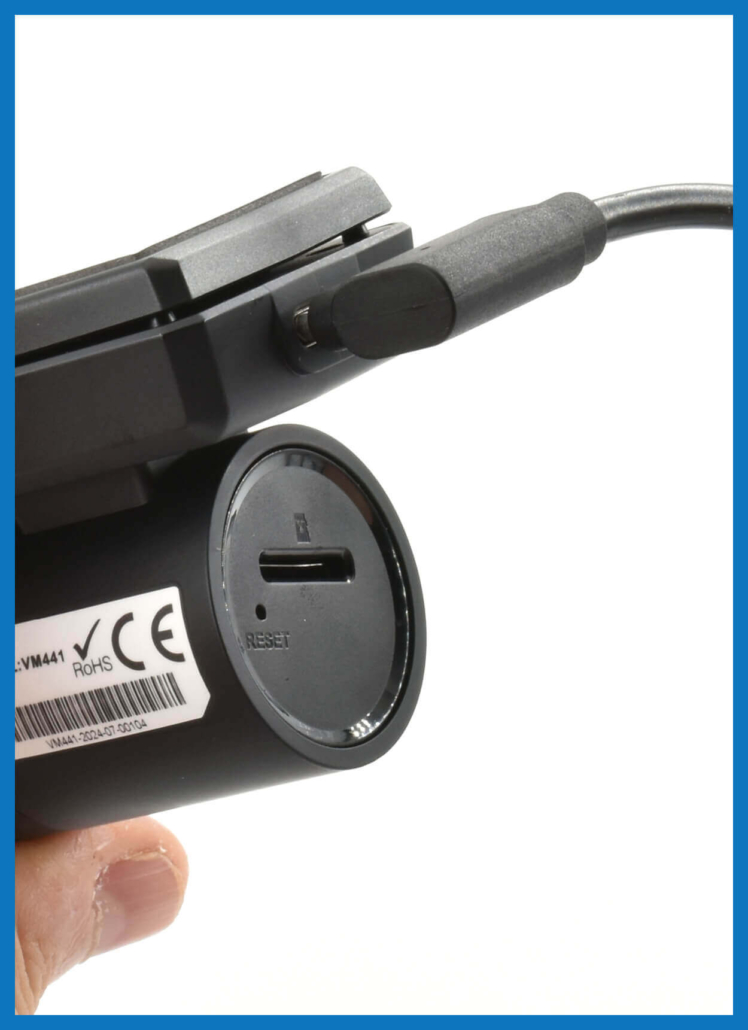

  • CONNECT THE POWER SUPPLY TO THE DASHCAM WITH THE TYPE-C PORT.

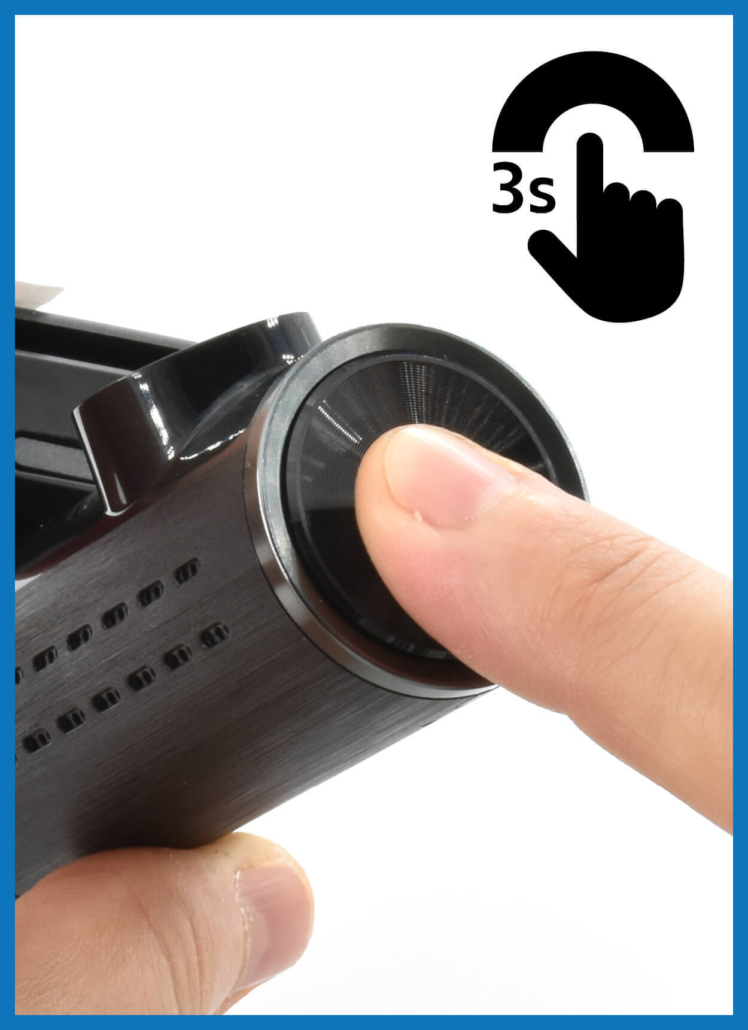

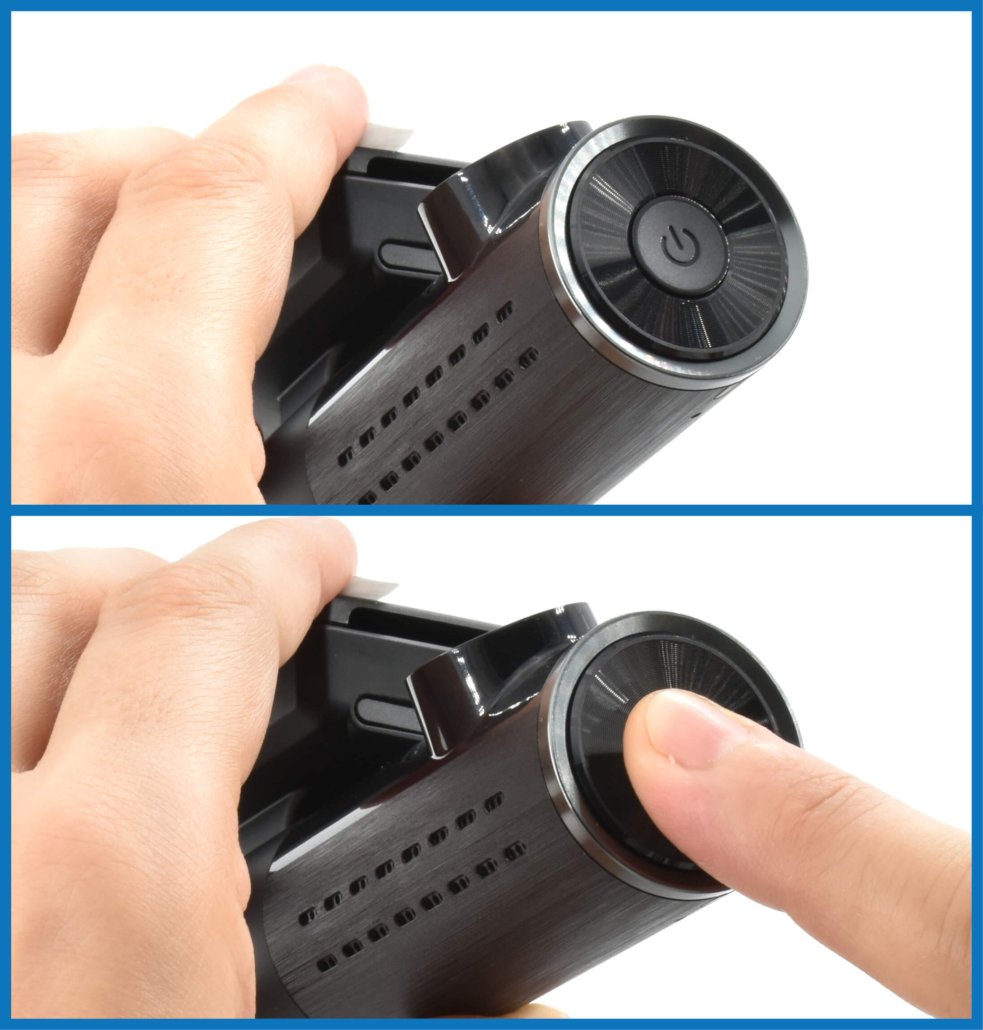

  • SWITCH ON THE DASHCAM BY PRESSING AND HOLDING THE ON/OFF BUTTON FOR AT LEAST 3 SECONDS.

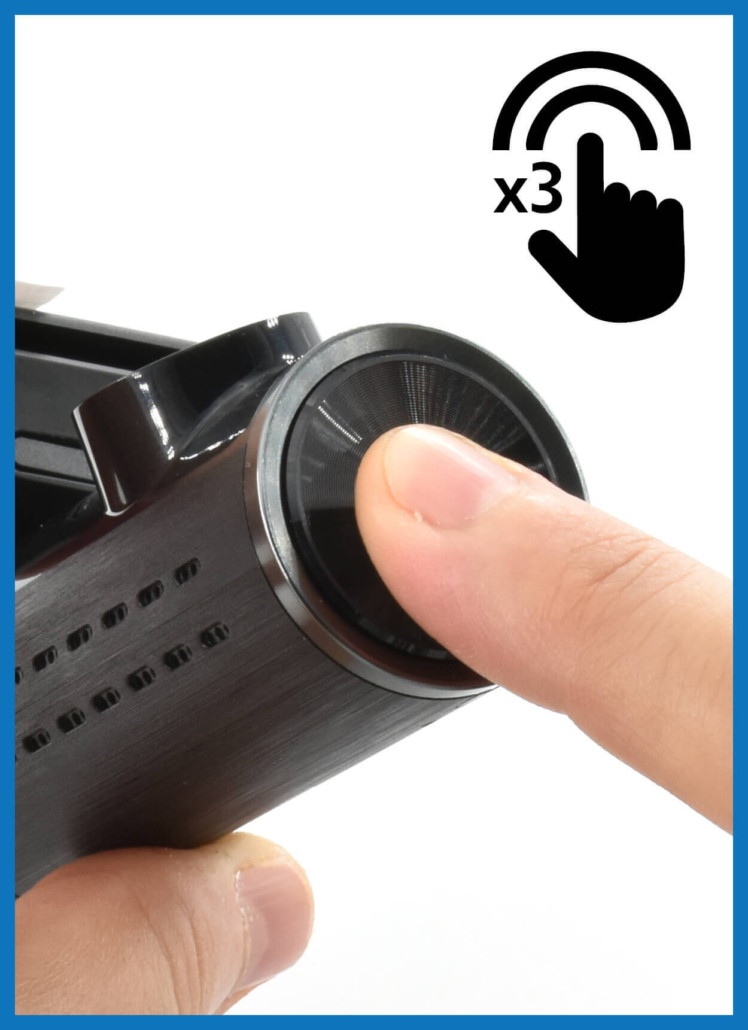

  • FORMAT THE MICRO SD CARD BY PRESSING THE ON/OFF BUTTON 3 TIMES.

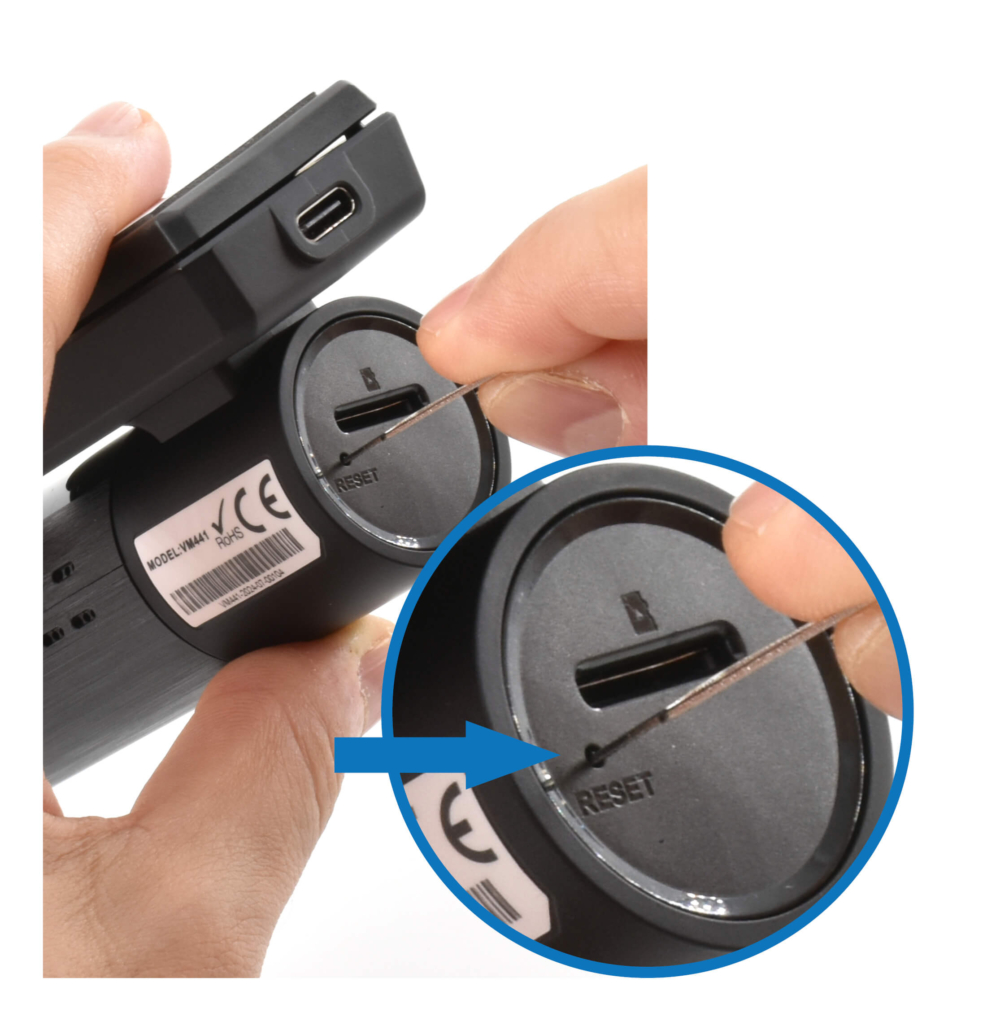

POWER SUPPLY AND RESET

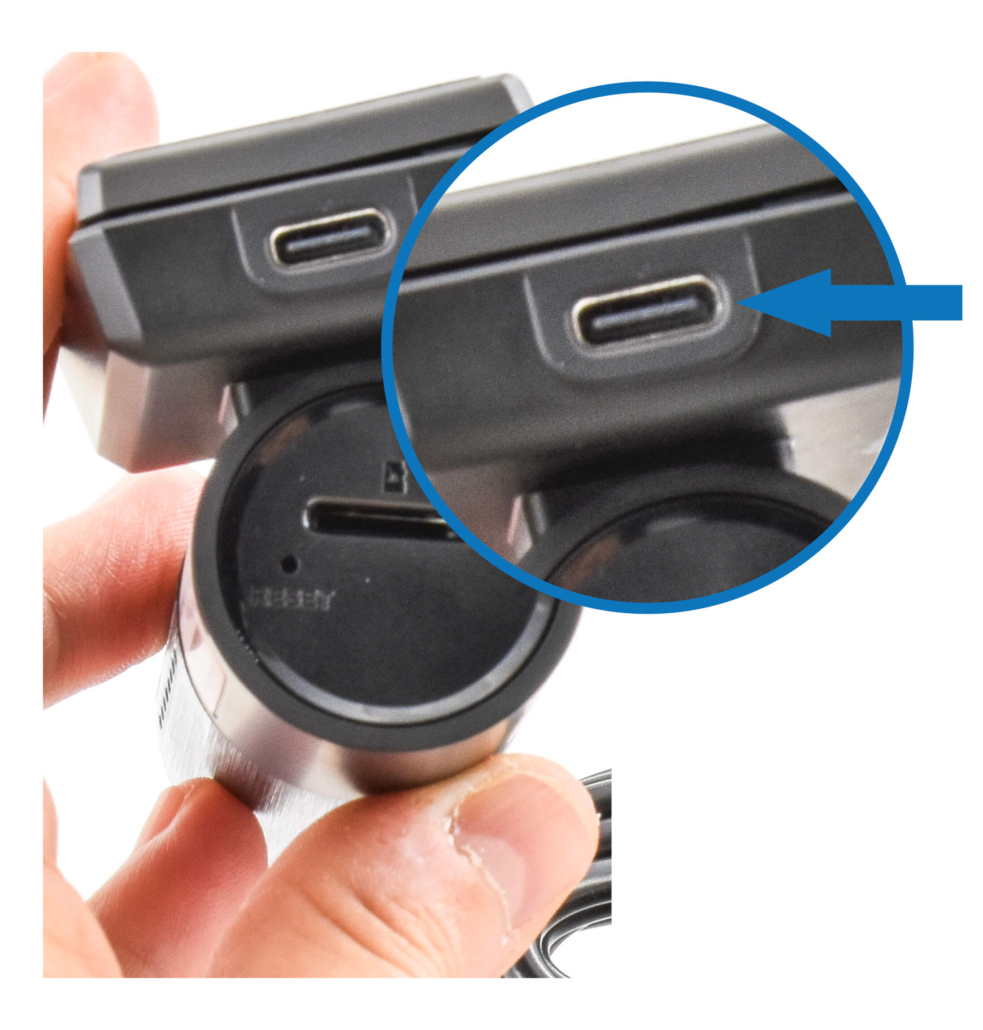

TYPE-C POWER SUPPLY PORT

RESET BUTTON

POWER ON AND CONTROLS


ON/OFF
PRESS AND HOLD FOR 3 SECONDS
WI-FI HOTSPOT ON/OFF
PRESS ONCE

REC ON/OFF
PRESS TWICE
MICRO SD CARD FORMATTING
PRESS 3 TIMES

RESTORE FACTORY SETTINGS
PRESS 5 TIMES
RESTORE FACTORY SETTINGS AND RESTART
PRESS AND HOLD FOR 10 SECONDS

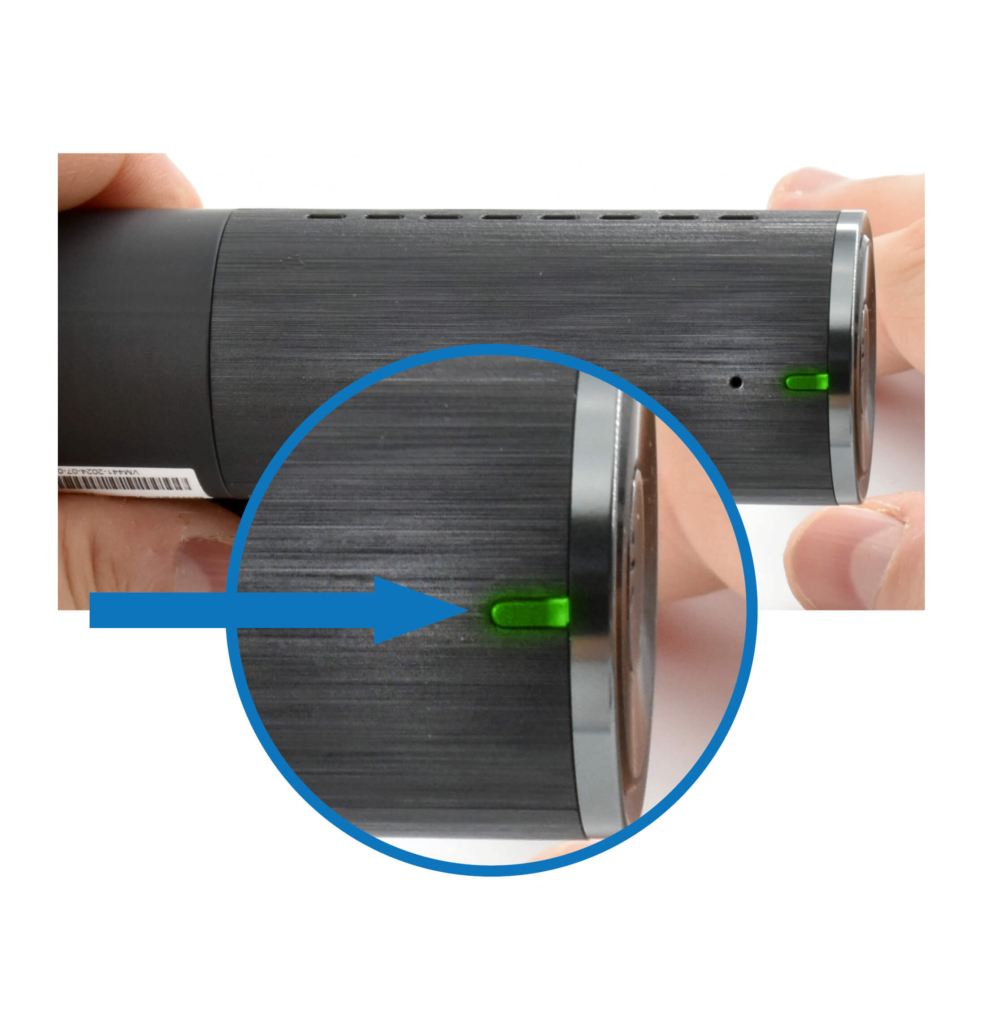

LED STATUS INDICATOR AND DVR


STANDARD RECORDING
The Digital Video Recording function is activated automatically when the vehicle is started and shuts off automatically when it is stopped. Recording is cyclic; the default video duration is 1 minute.
SAVING
– NORMAL VIDEOS.
SETTINGS

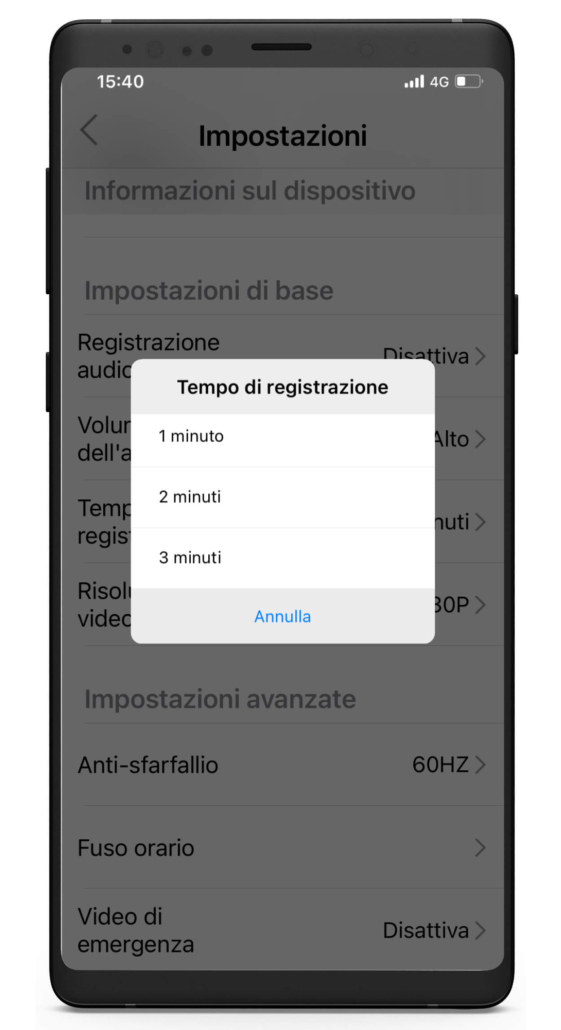

– Recording cycle duration
– Microphone
– Speaker language and volume
EMERGENCY RECORDING
If an impact is detected by the G-Sensor during driving, recording will continue for 30 seconds. Emergency videos are writeprotected and highlighted in the “ALARMS CENTRE” area.
WARNING! Depending on the circumstances in which the impact occurs, the video may be saved in the “NORMAL VIDEOS” folder – check both folders.
SAVING
– EMERGENCY VIDEOS
– NORMAL VIDEOS
SETTINGS
– G-Sensor sensitivity

PARKING MONITORING
In the event of impact detected by the G-Sensor while the vehicle is parked, a 1-minute video will be
recorded.
WARNING! The video will be saved in the
“NORMAL VIDEOS” folder if the impact was detected within 5 minutes of key-off, or in the “EMERGENCY VIDEOS” folder if the impact was detected more than 5
minutes from key-off: check both folders.
SAVING
– EMERGENCY VIDEOS
– NORMAL VIDEOS
SETTINGS
– G-Sensor sensitivity
PARKING TIMELAPSE
Records 1 frame per second when the vehicle is parked.
SAVING
– TIME LAPSE RECORDING.

FAULT
– MICRO SD CARD FORMATTING
– SMARTPHONE CONNECTION
– UPDATE

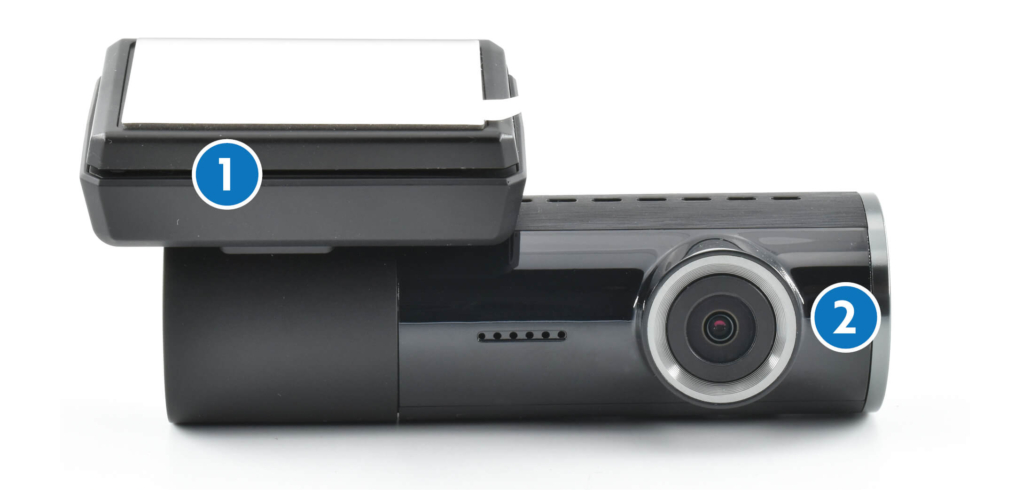

MOUNTING, UNMOUNTING AND ADJUSTMENTS

1. DASHCAM mount with quick realease system

2. Adjustable camera lens

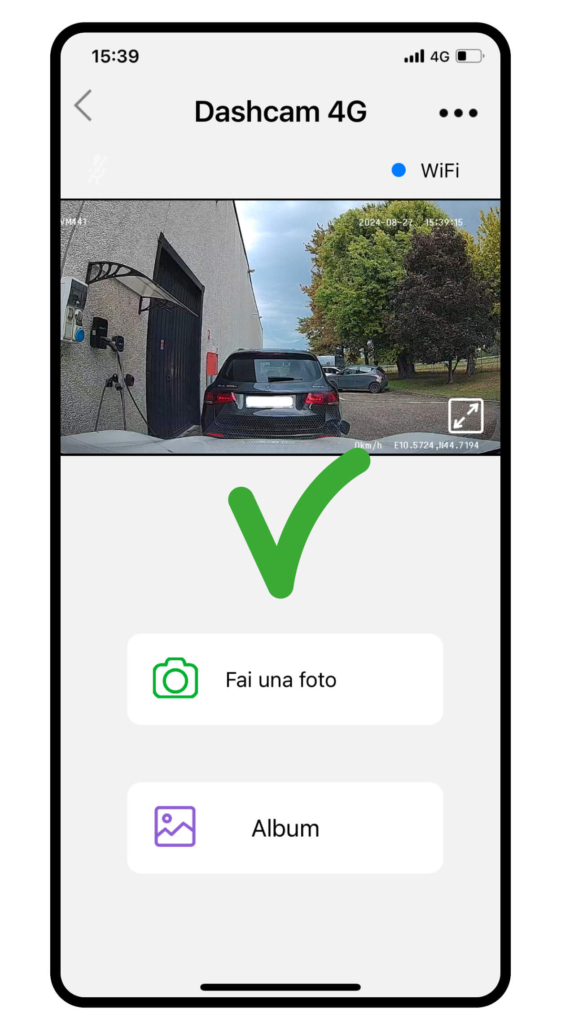

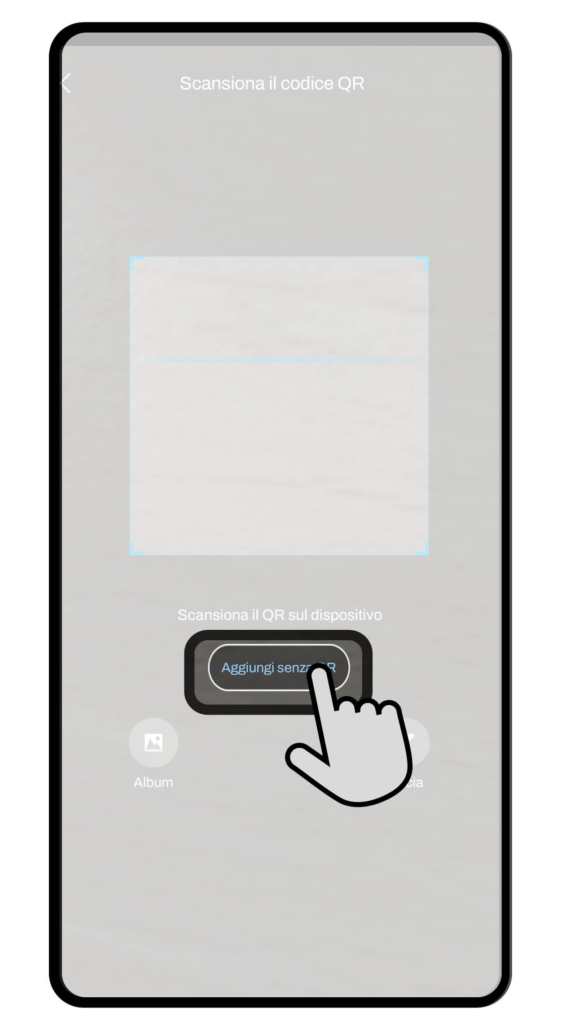

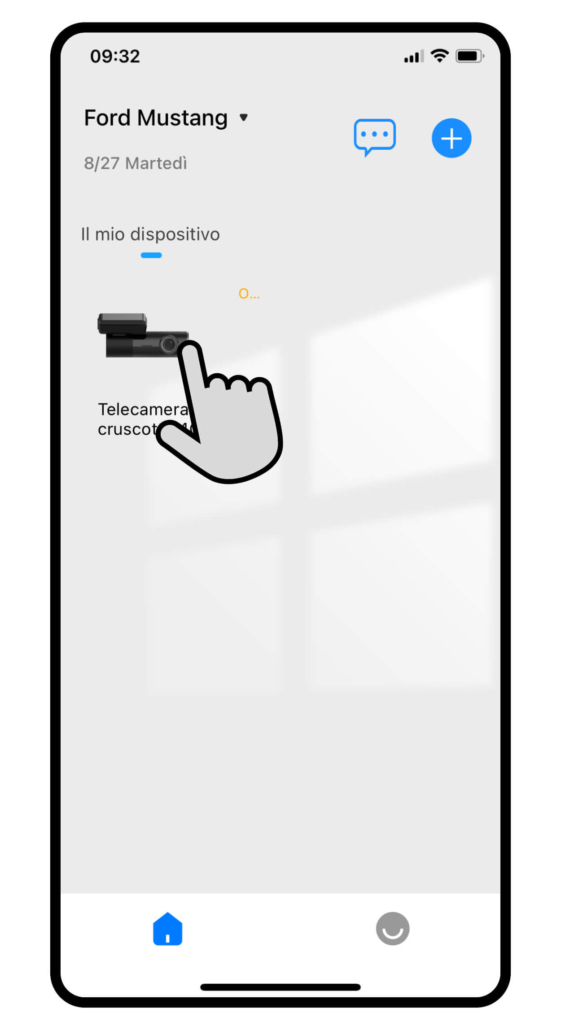

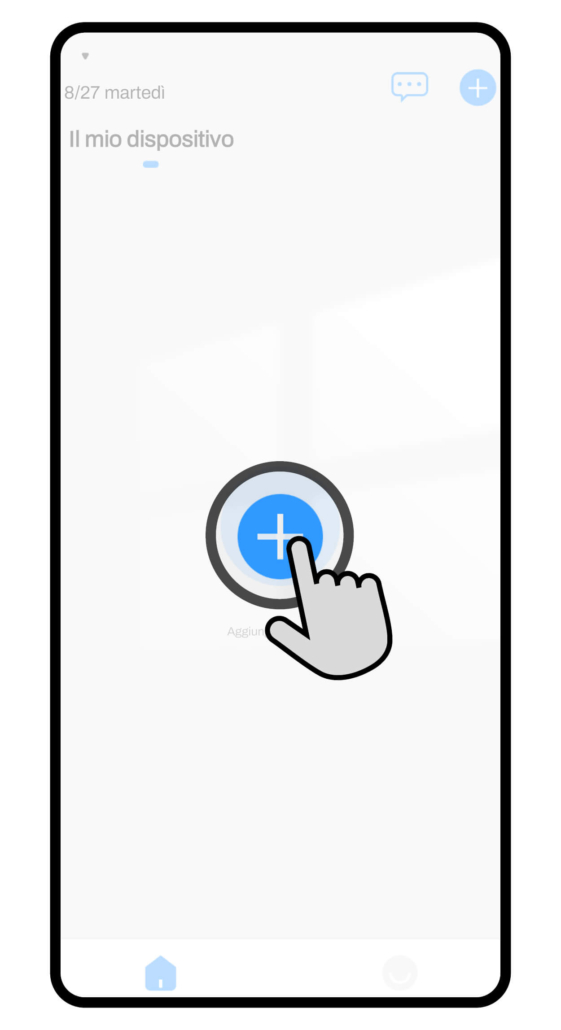

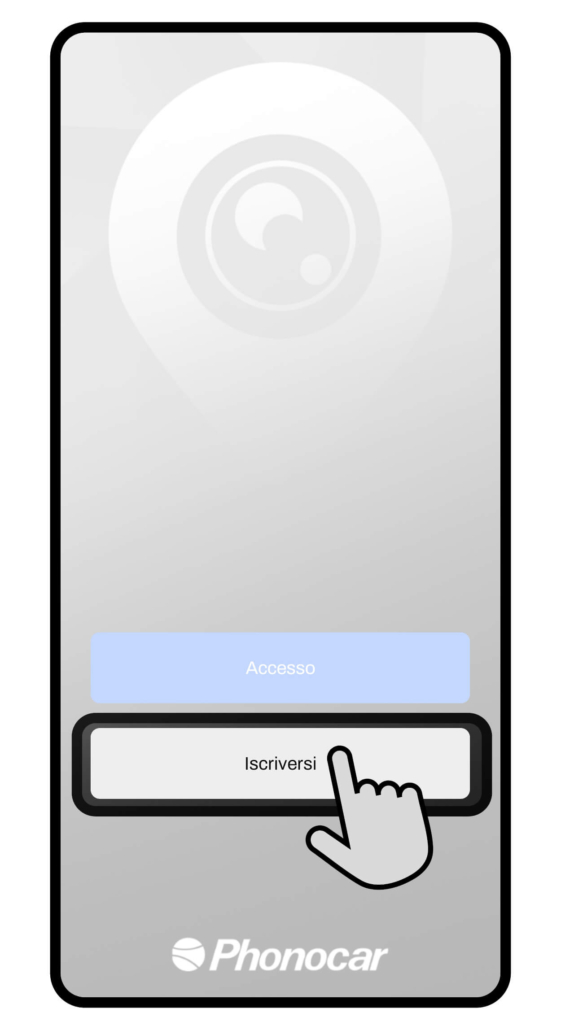

CONNECTION TO THE “DASH VISION 4G” APP
AND POSITIONING

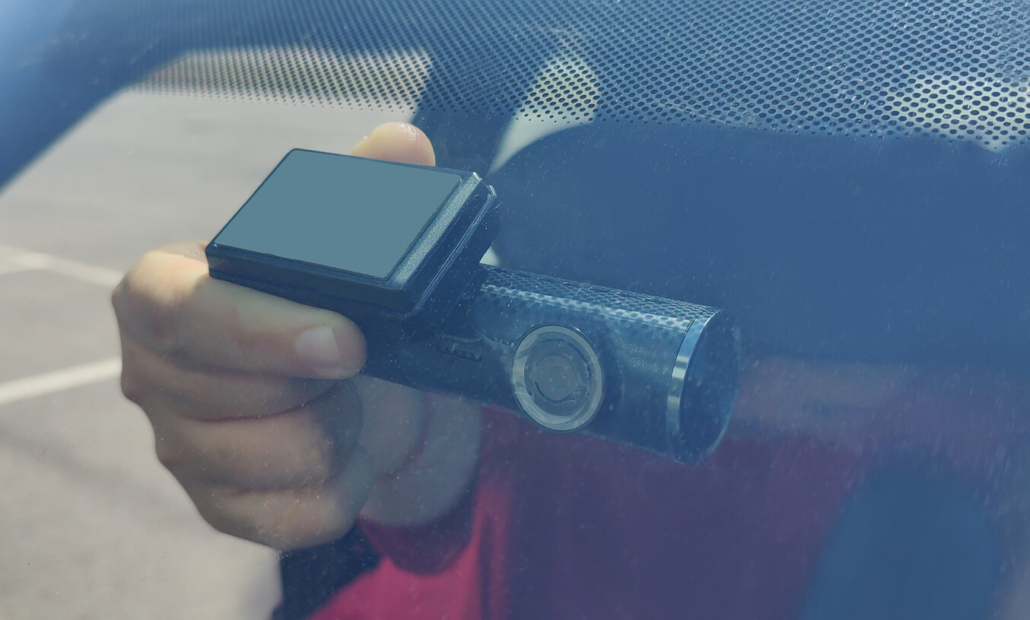

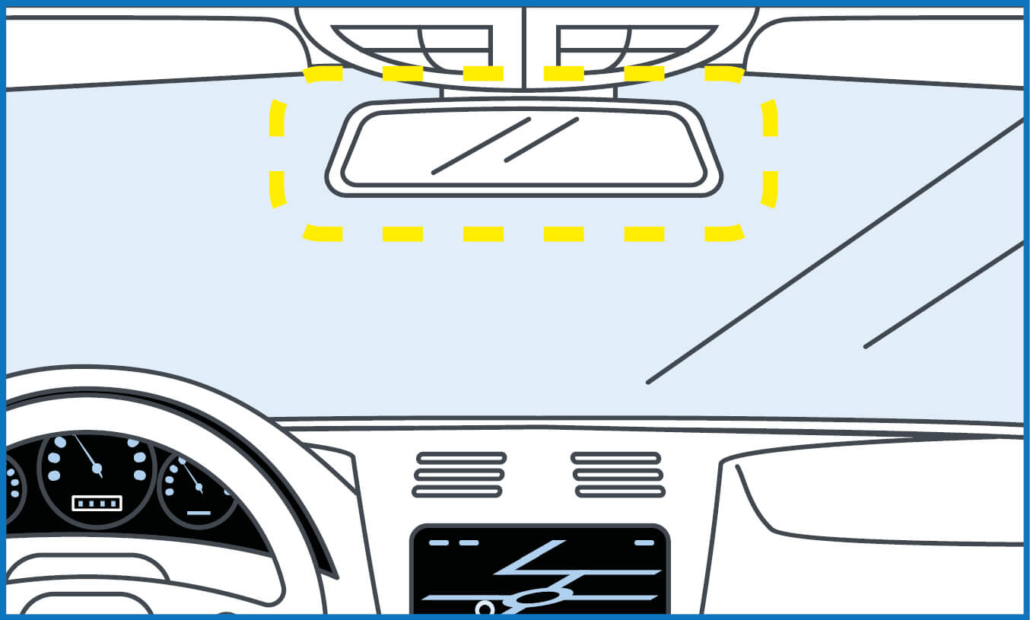

  • FIND THE OPTIMUM POSITION FOR INSTALLATION ON THE WINDSCREEN.

    RECOMMENDED ZONE: behind the rear-view mirror.

  • CLEAN THE GLASS BEFORE ATTACHING THE DOUBLESIDED ADHESIVE.

  • ATTACH THE MOUNT WITH THE DOUBLE-SIDED ADHESIVE.

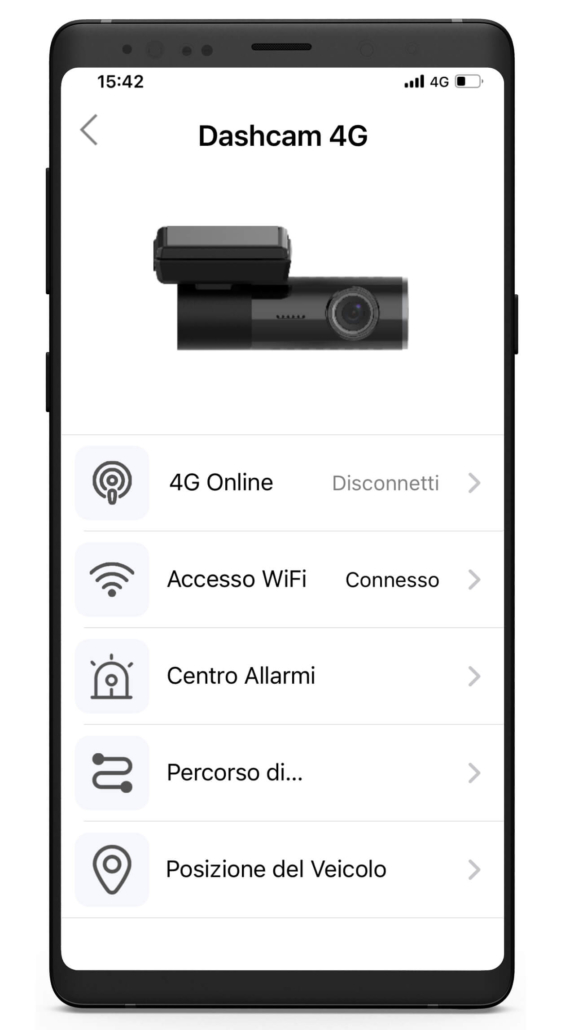

APP DASH VISION 4G: FEATURES

  • VIEW FOOTAGE IN REAL TIME, EVEN REMOTELY.

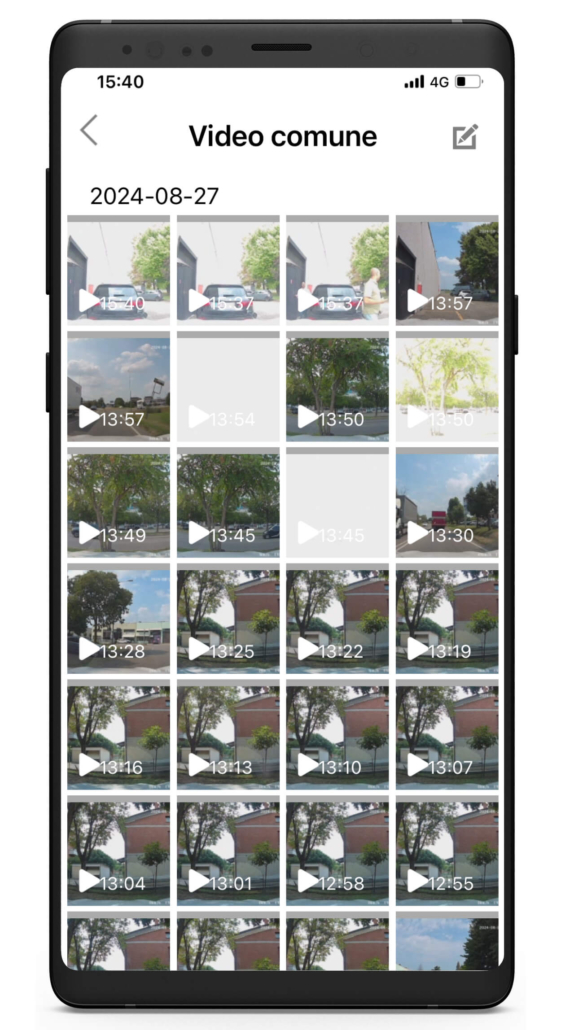

  • CONSULT THE STORAGE FOLDERS TO SAVE, DELETE AND SHARE VIDEO AND IMAGES.

  • ENABLE AND DISABLE THE FUNCTIONS.

  • MODIFY SETTINGS.

  • VIEW JOURNEYS.

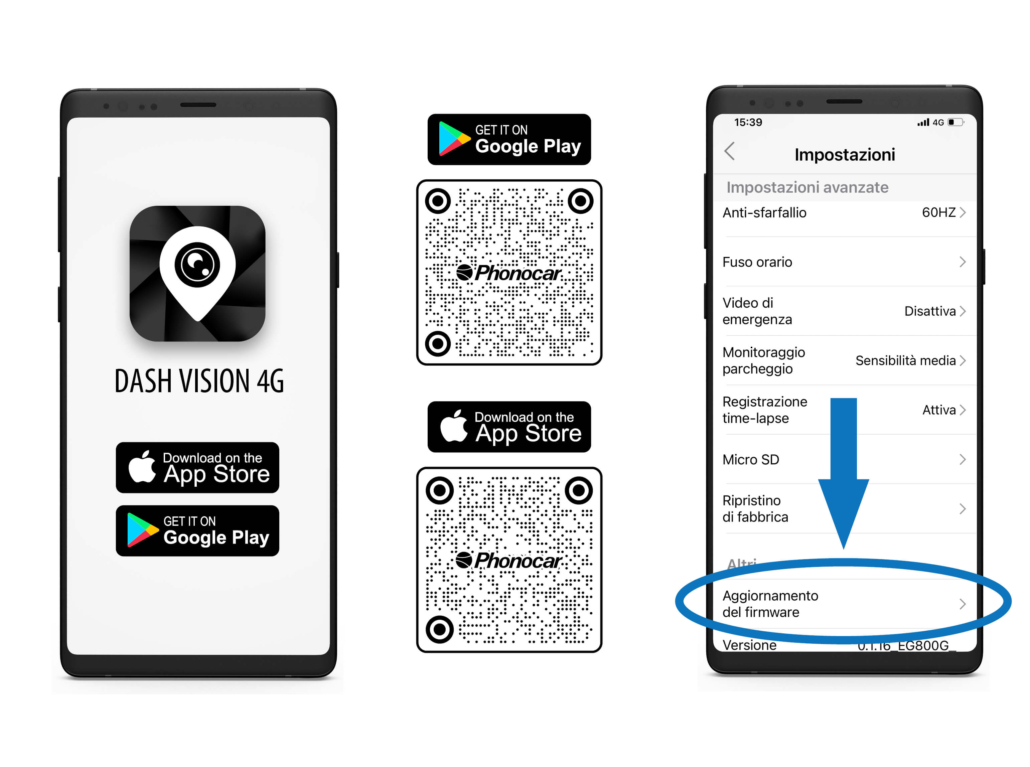

UPDATING THE DASHCAM

  • FIRMWARE UPDATE VIA THE DASH VISION 4G APP.

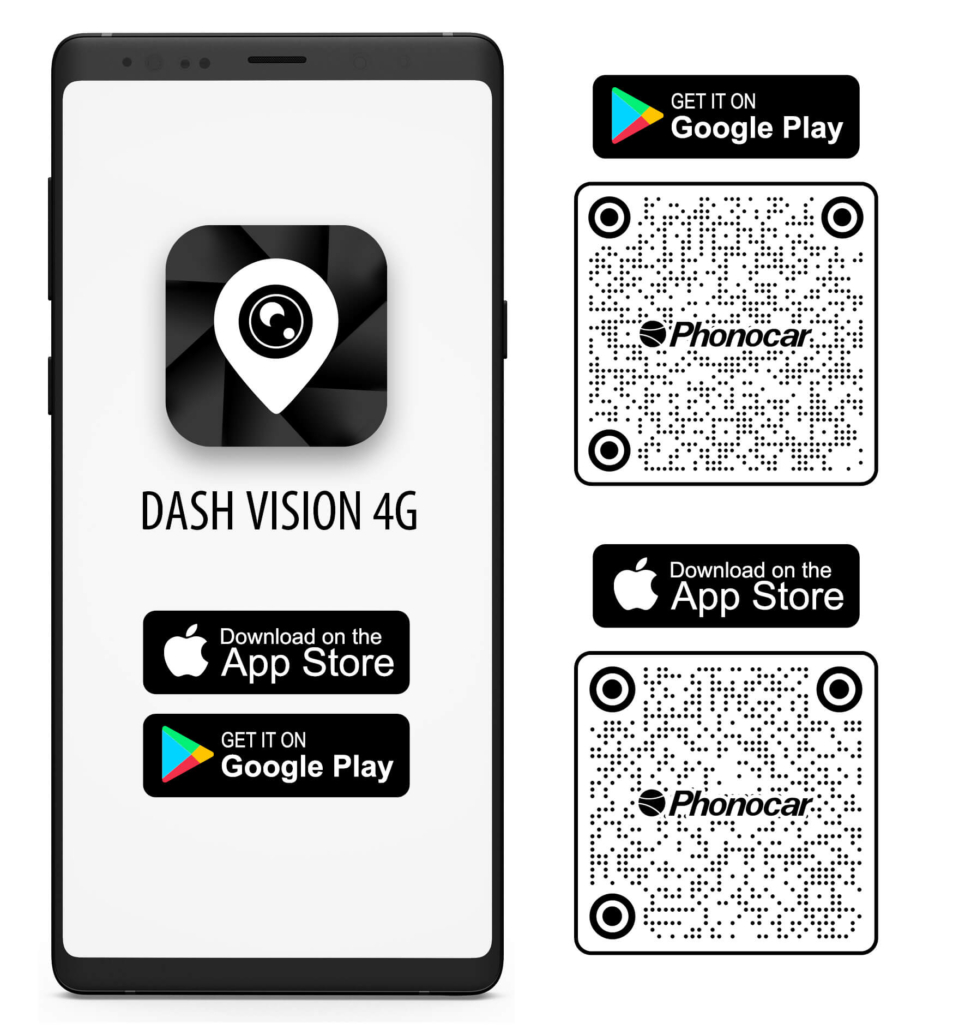

  1. Open the DASH VISION 4G APP
    Link to Play Store
    Link to App Store

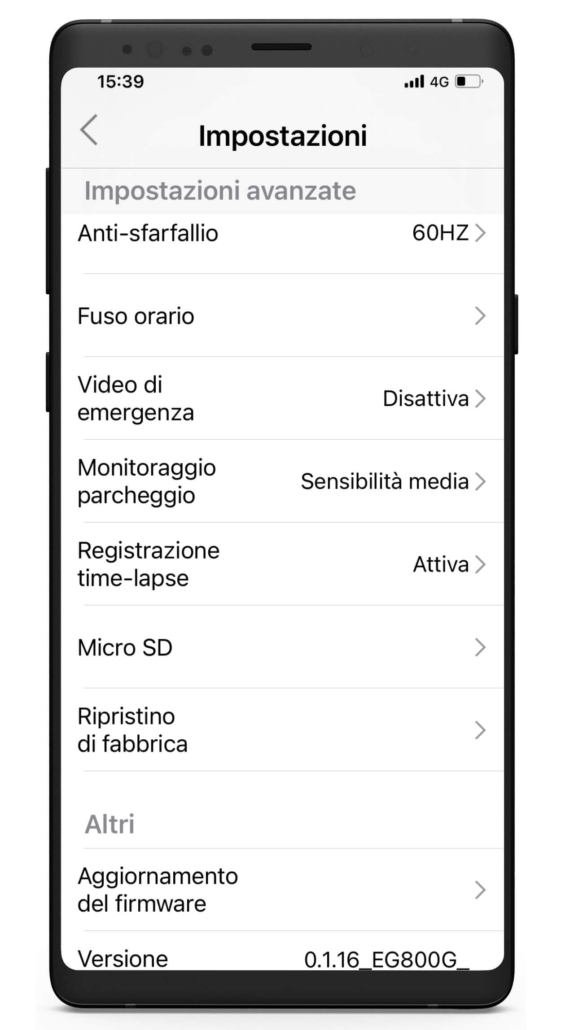

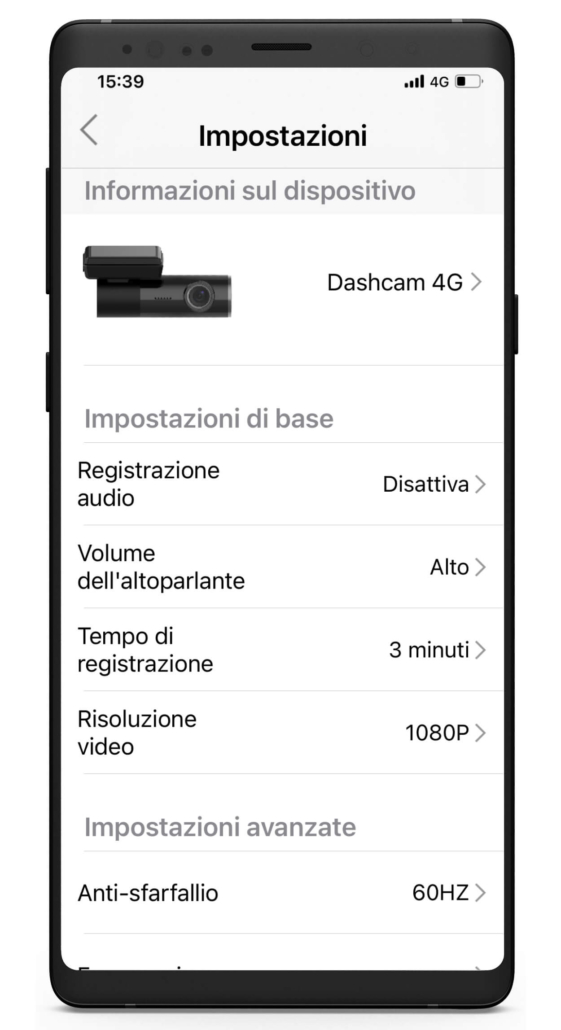

  2. Go to the SETTINGS screen.
  3. Click on FIRMWARE UPDATE and follow the on-screen instructions.
